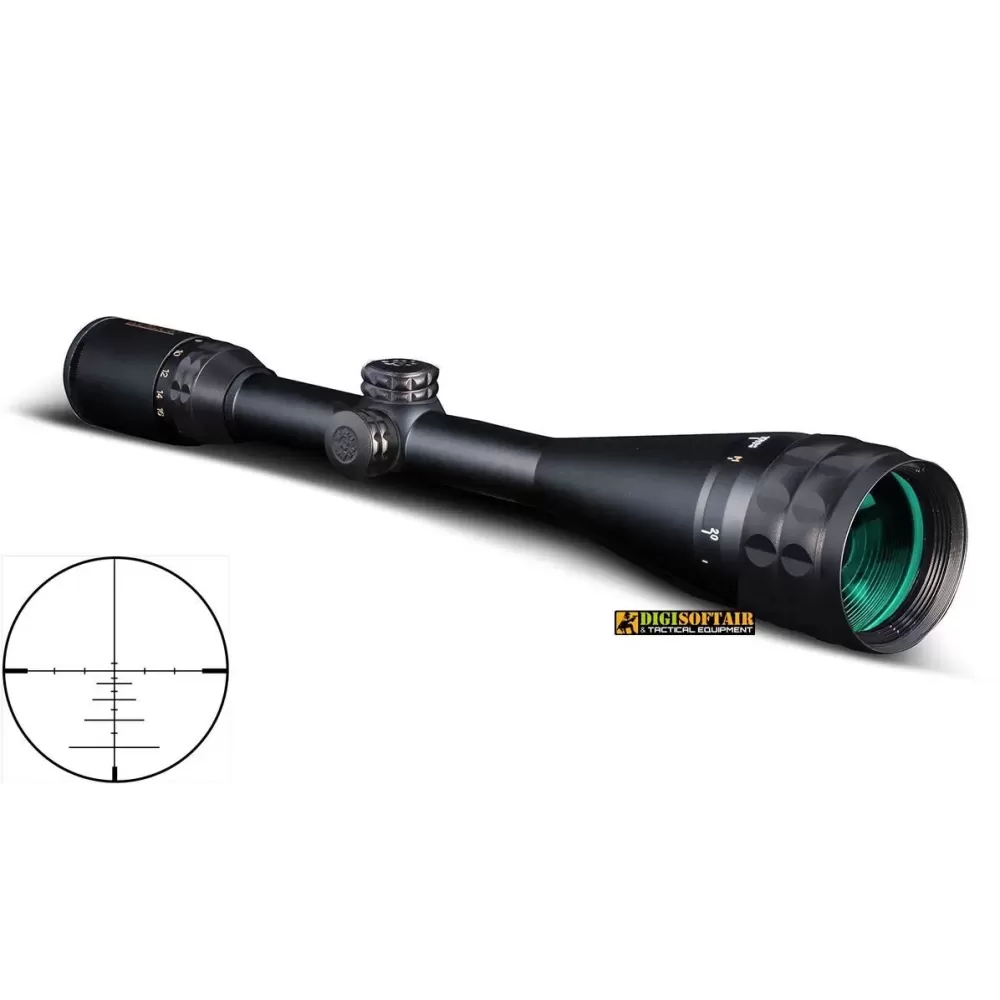

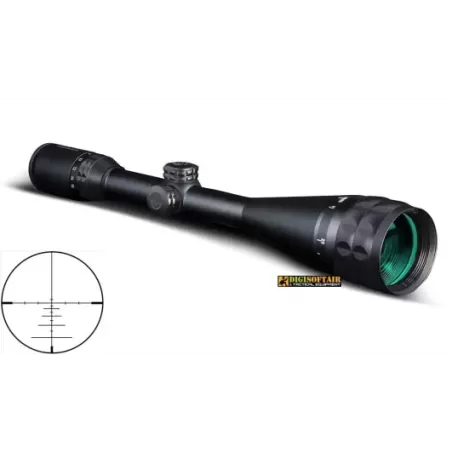

The purpose of this reticle is to sensibly extend your range and improve your accuracy while taking the most difficult shots, because this reticle provides you with several aiming points that correspond to different distances and are based on the most popular centerfire and black powder loads. Due to its lateral hash marks, this reticle also allows for compensation in case of strong crosswinds.

- ENGRAVED 550 RETICLE
- ADJUSTABLE OBJECTIVE
- ONE-PIECE ALUMINIUM TUBE
- WATERPROOF, FOGPROOF, SHOCKPROOF
- MULTI COATED OPTICS
- FINGER ADJUSTABLE TURRETS
- NITROGEN PURGED, 100%
- 1" TUBE DIAMETER
- PRECISION 1/8 M.O.A. ADJUSTMENTS

TECHNICAL DETAILS
Magnification x ø Objective: 4-16x50 ZOOM
Reticle: Engraved 550 Ballistic reticle
Field of view at 100m/yds: 7.83m/23.4ft at 4x • 1.95m/5.87ft at 16x
Weight: 697gr - 24.6oz
Length: 406mm - 16”
Eye Relief: 76mm - 3”
Exit Pupil: 10mm at 4x • 3.1mm at 16x
Click value mm@100m in@100yds: 1/8 M.O.A. (3.4 mm)
Adjusting range m@100m in@100yds: 1.7m - 66.9”
Mounting length mm/inches: 152mm - 5.9”
