FPS Lightweight full metal rack 14 teeth Fps piston PM01

FPS Lightweight full metal rack 14 teeth Fps piston PM01


FPS Lightweight full metal rack 14 teeth Fps piston (PM01)

5 IN STOCK
  • Pay in 3 interest-free instalments
    Pay in 3 interest-free instalments
  • Shipments orders in 24h with express curier (see conditions of sale)
    Shipments orders in 24h with express curier (see conditions of sale)
  • Guaranteed return (see conditions of sale)
    Guaranteed return (see conditions of sale)
  • Availability of warehouse updated in real time
    Availability of warehouse updated in real time
  • Secure payments
    Secure payments
€11.90
Tax included Delivery in 3/5 days with conditions
AEG internal parts
qty
Available

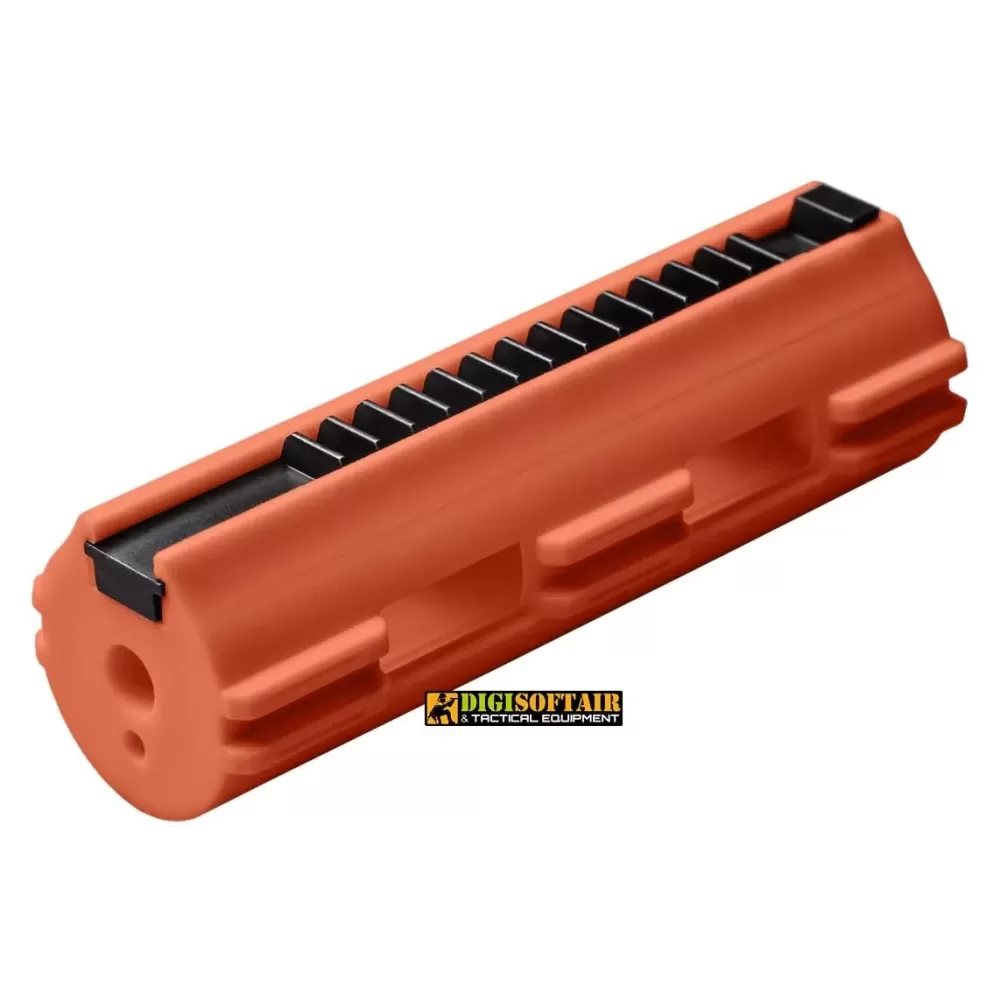

Fps is proud to present the first lightened piston with a technopolymer body and with all 100% Made in Italy metal teeth.

For the material of the piston the POM C was chosen, a technopolymer with high mechanical performances and a very low friction coefficient as it is self lubricating.
The rack has been manufactured using MIM (Metal Injection Molding) technology, since this production process guarantees dimensional precision and strength equal to those of solid machining.
The rack is presented with the second missing tooth and with the third already lowered by 3 tenths of a millimeter, as this configuration predisposes the piston itself for a correct angle of engagement (AOE) and makes it suitable for high speed.
The type of metal injected is SAE 4650 which is currently considered the best material on the market for this type of use.
The sliding guides are designed to minimize friction and retain the lubricant for a long period of time.
The rack seat is decentralized to favor the coupling between the piston teeth and those of the sector gear.
The longitudinal reinforcements at the sides of the teeth increase the robustness of the piston and avoid contact of the rack with the inner wall of the cylinder.
Special ribs decrease the contact surface between the spring and the internal part of the piston body and consequently also the friction between metal and technopolymer is decreased during contraction and elongation due to the firing cycle.

100% MADE IN ITALY
100% COMPATIBLE MARUI
