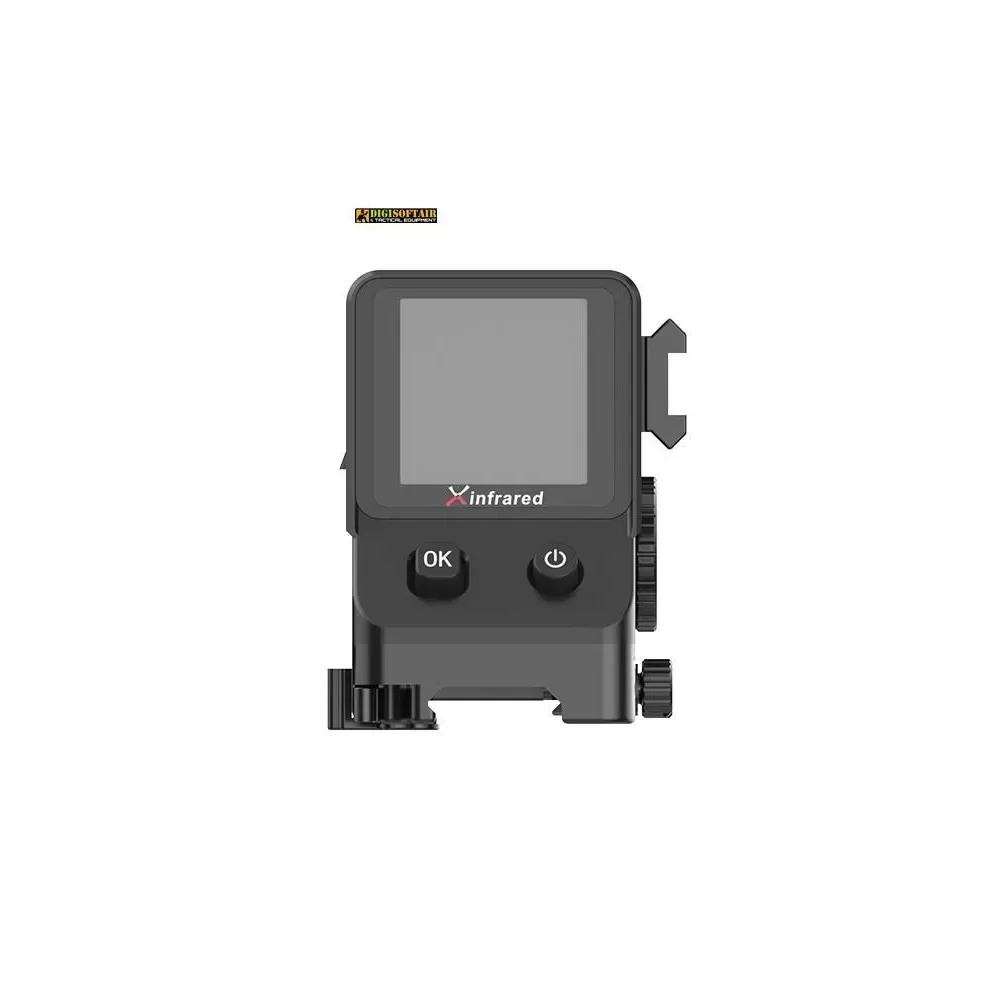

InfiRay Holo is a multifunctional direct view reflex thermal sight incorporated with the latest generation InfiRay thermal imaging detector.

The 1.63″ OLED display offers an excellent visual experience of fast target acquisition without compromise.

It is an ideal targeting thermal imager with compact size, easy operation and multiple installation interfaces (side picatinny available).
17μm ceramic detector on InfiRay Holo

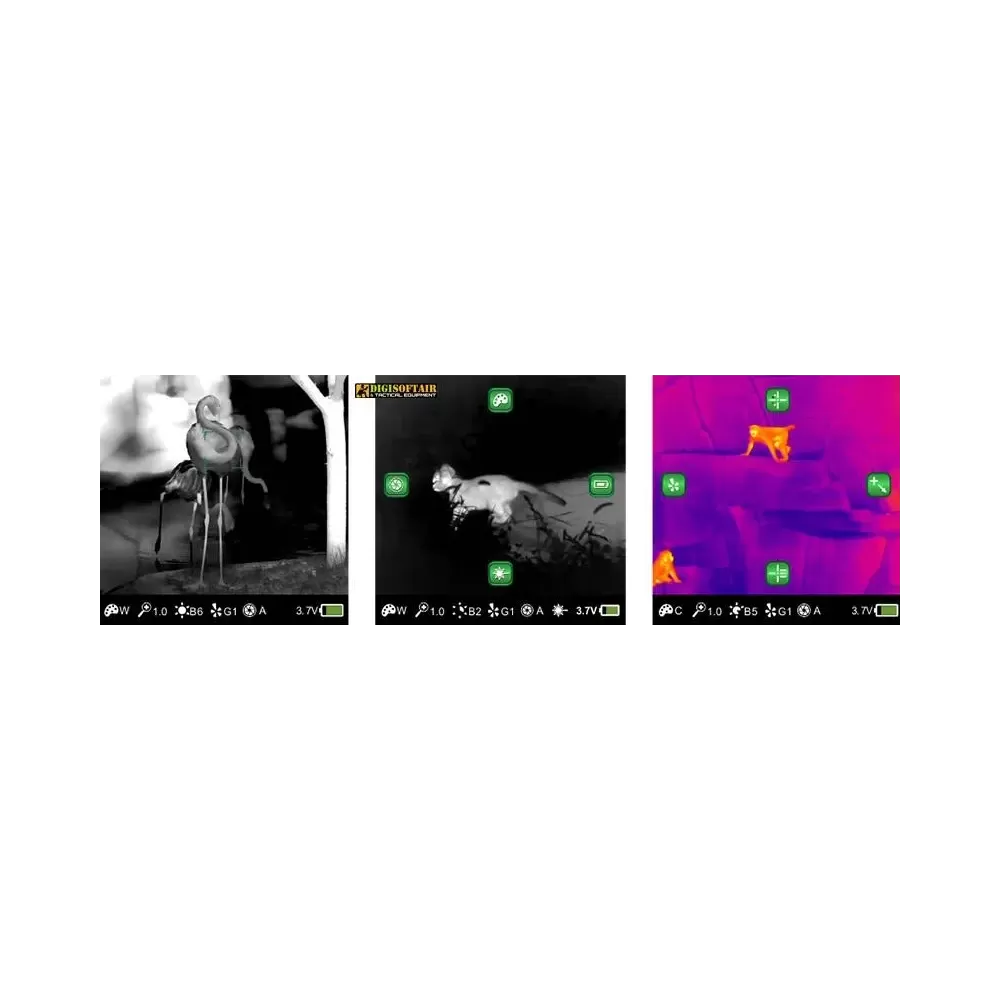

The high-performance InfiRay VOx detector and advanced image processing creates brilliant, sharp images.

InfiRay Holo is designed for direct aiming with a 1.63″ AMOLED display, you can observe and aim fast and accurately using both eyes, more comfortable and clearer with no visual difference.


Short boot time, low power consumption with InfiRay Holo

The 3-second startup time helps save power and can be activated quickly when the right time comes. Low power consumption ensures that you don't have to worry about power supply. The InfiRay Holo is a sharp and distinct thermal monocular that looks a lot like a regular handheld video camera.

Also, when mounted to the custom grip, the Holo grip can be powered by a single 18650 battery. For example, the 20000mAh battery capacity can be used to provide a minimum of 8 hours for the Holo.
Compact size and lightweight, fully IP67 waterproof

With reasonable layout, compact structure, easy-to-use controls, ergonomic design and light weight, the Holo series is more comfortable and convenient for outdoor use.

IP67 waterproof protection ensures that the Holo series works perfectly in humid environments, heavy rain, snowfall and immersion in 1 meter of water for up to 30 minutes.

Choice of multiple mounts, scope or monocular (not included), so in addition to being used as a thermal imaging sight on firearms, the InfiRay Holo can also be paired with other devices.

Technical features:

Sensor resolution 320×280 17µm
NETD ≤40
Frame rate, 25Hz
Objective lens, 13 mm
Shooting angle, FOV 23.6°x20.7°
1.63″ AMOLED display
E-zoom x1/x2/x3/x4
Lasers, nm 650
Reticle Multiple color and pattern options
CR123A battery
Autonomy 8 hours
IP67 waterproof
Weight (without battery) g <250
Dimensions, mm 58.5×80.5×74.5
Picatinny mount
Detection distance 476m
