CNC Aluminum Hopup Chamber M4A Pro (with BB Latching System) unit is precisely machined to perform accurately and consistently on Tokyo Marui (include G&G, KRYTAC, except KWA) Standard M4/M16 AEG series.
The Hopup Chamber M4A unit is built with an aluminum Rotary Dial Knob for fine hopup adjustments, the precision Hopup Lever and 4mm Bucking Nubs (6mm Bucking Nubs are optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot.
CNC Aluminum Hopup Chamber M4A Pro (with BB Latching System) unit is precisely machined to perform accurately and consistently on Tokyo Marui (include G&G, KRYTAC, except KWA) Standard M4/M16 AEG series.
The Hopup Chamber M4A unit is built with an aluminum Rotary Dial Knob for fine hopup adjustments, the precision Hopup Lever and 4mm Bucking Nubs (6mm Bucking Nubs are optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot.
The Hopup Chamber M4A unit is designed to accept 21.00mm to 21.25mm nozzle length, and fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BBs during use.
The Hopup Chamber M4A unit is wisely equipped with an interchangeable Inlet Adapter OD11mm to ensure the hopup unit is inserted exactly in the center of the 11mm inner bore AEG Gearbox/HPA Engine nozzle outlet without wobbling. (Inlet Adapter OD11.5mm and OD12mm are optional)
Also mounted the removable CNC Brass Side Wings to slide smoothly into the outer barrel slots, and included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting.
More than that, the Hopup Chamber M4A Pro unit is specially designed with a new BB Latching System to prevent BB dropping after removing the magazine. The Latching Arm can also be manually pressed to release the remaining BB from inside the hopup chamber.
***The Dual UV LED Tracer Module is an add-on option to glow BB in the dark. Operating Voltage from 7VDC - 15VDC (2-4 cells LiPo, 6-13 cells NiCad). (Sold separately)
***Test results: FPS might be increased from 10FPS to 30FPS over the stock setup. Please check your FPS!

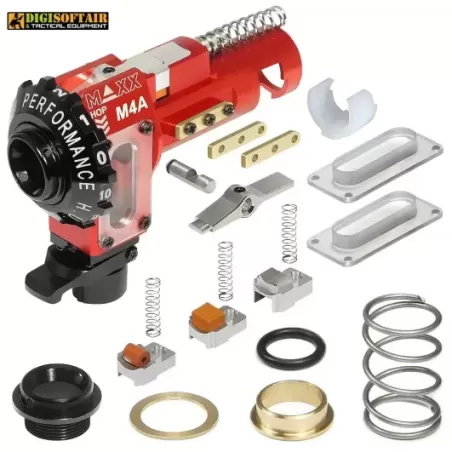

Includes
1 x CNC Aluminum Hopup Chamber M4A Pro (with BB Latching System) unit
2 x CNC Acrylic Side Covers
2 x CNC Brass 2.5mm Side Wings
1 x CNC Steel Pivot Pin
1 x CNC Aluminum Hopup Lever
1 x CNC Aluminum Soft Round Nub
1 x CNC Aluminum Soft Flat Nub (4mm)
1 x CNC Aluminum Hard Concave Nub (4mm)
3 x Steel Nub Springs
1 x CNC Steel Spring Guide
1 x Steel Upper Compression Spring
1 x Steel Center Compression Spring
1 x CNC Delrin Locking C-Clip
1 x CNC Brass Barrel Spacer
1 x Brass Barrel Spacer Holder Oring
1 x CNC Aluminum Rotary Dial Knob
1 x CNC Aluminum Inlet Adapter (OD11mm)
1 x CNC Brass Inlet Spacer
specification
Overall Length: 51.65mm
Overall Height: 37.75mm
Inlet Adapter Outer Diameter (to fit into Gear Box): 11mm
Hub Outer Diameter (to fit into Outer Barrel): 12mm
Hub Inner Diameter (to fit Nozzle): 8mm
Feeder Outer Diameter (to fit magazine): 8.85mm
Feeder Length (to fit magazine): 6mm
Material: Aluminum 6061
Features
Machined from a solid aircraft aluminum block with tight tolerances to achieve the most accuracy, consistency, and durability
Performed accurately and consistently on Tokyo Marui (includes G&G, KRYTAC, except KWA) Standard M4/M16 AEG series
Precision Rotary Dial Knob for fine hopup adjustments
Re-engineered the precision Hopup Lever and 4mm Bucking Nubs (6mm Bucking Nubs are optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot
Removable Steel Pivot Pin for ease of setup and maintenance
Accepted 21.00mm to 21.25mm nozzle length
Fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use
Wisely equipped with an interchangeable Inlet Adapter OD11mm to ensure the hopup unit is inserted exactly in the center of the 11mm inner bore AEG Gearbox/HPA Engine nozzle outlet without wobbling. (Inlet Adapter OD11.5mm and OD12mm are sold separately)
Mounted the removable CNC Brass Side Wings to slide smoothly into the outer barrel slots
Included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting
Equipped with 2 compression springs on top and center to ensure the hopup unit is seated straight and air tight during use
Specially designed with a new BB Latching System to prevent BB dropping after removing the magazine
The Latching Arm can also be manually pressed to release the remaining BB from inside the hopup chamber
Compatible with any 11mm inner bore AEG Gearbox/HPA Engine nozzle outlets
The Dual UV LED Tracer Module to glow BB in the dark ready!
Weight
N/A grams
Usage
Compatible with most Tokyo Marui (includes G&G, KRYTAC, except KWA) Standard M4/M16 AEG series
Requires
Wearing eye protection is recommended
Use proper tools for disassembly and reassembly the gear box with great care due to spring tension
Bearing lubricant oil/grease is recommended for smooth operation
