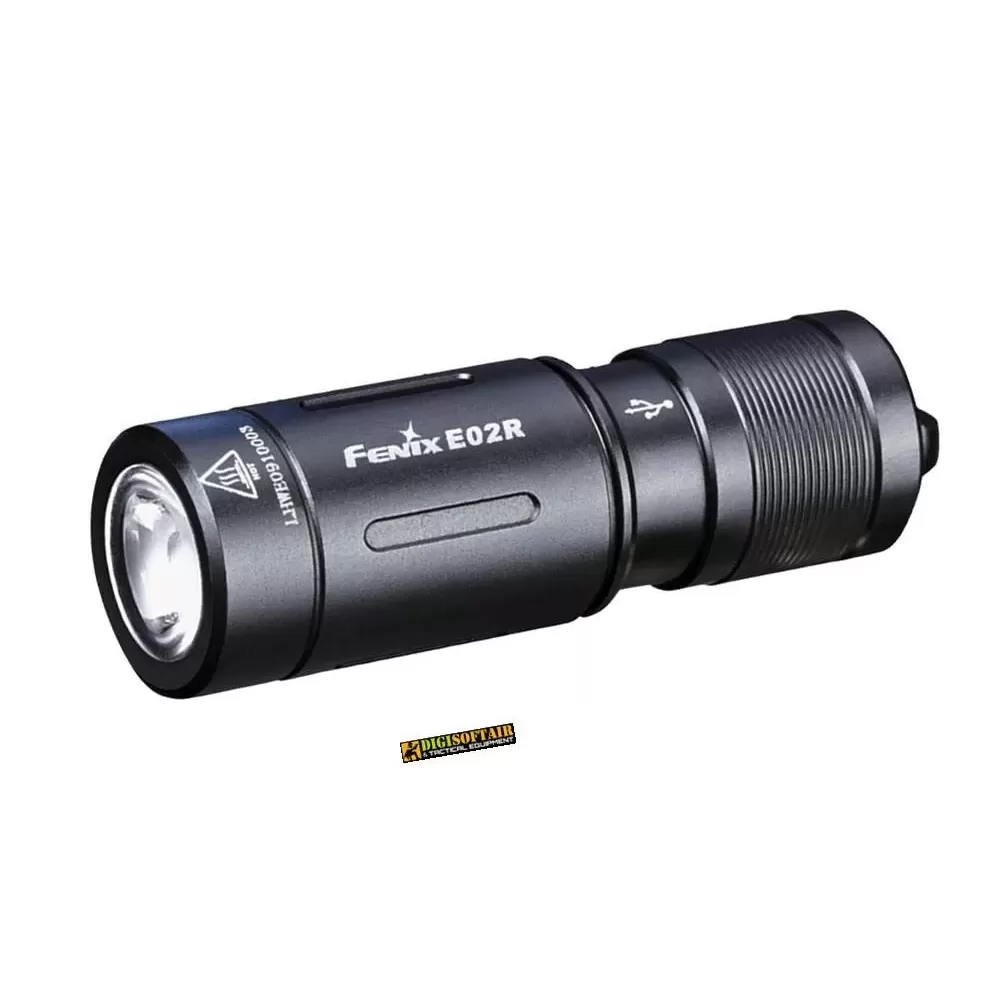

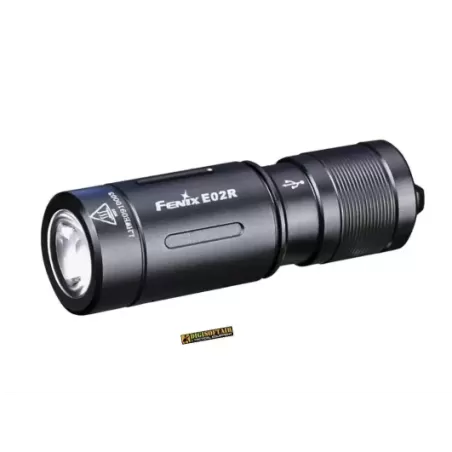

The Fenix E02R Flashlight is a rechargeable flashlight that can emit up to 200 lumens from its built-in 120mAh li-polymer battery. Fully rechargeable via a built in micro-USB charging port, this flashlight has a maximum runtime of 6 hours and 30 minutes. Access two brightness levels with a quick twist of the head. At less than 2” long and just over a half of an inch round, this little flashlight is built tough with an IP68 dustproof and waterproof rating. Super small and compact, this keychain flashlight is a great choice for every day carry.

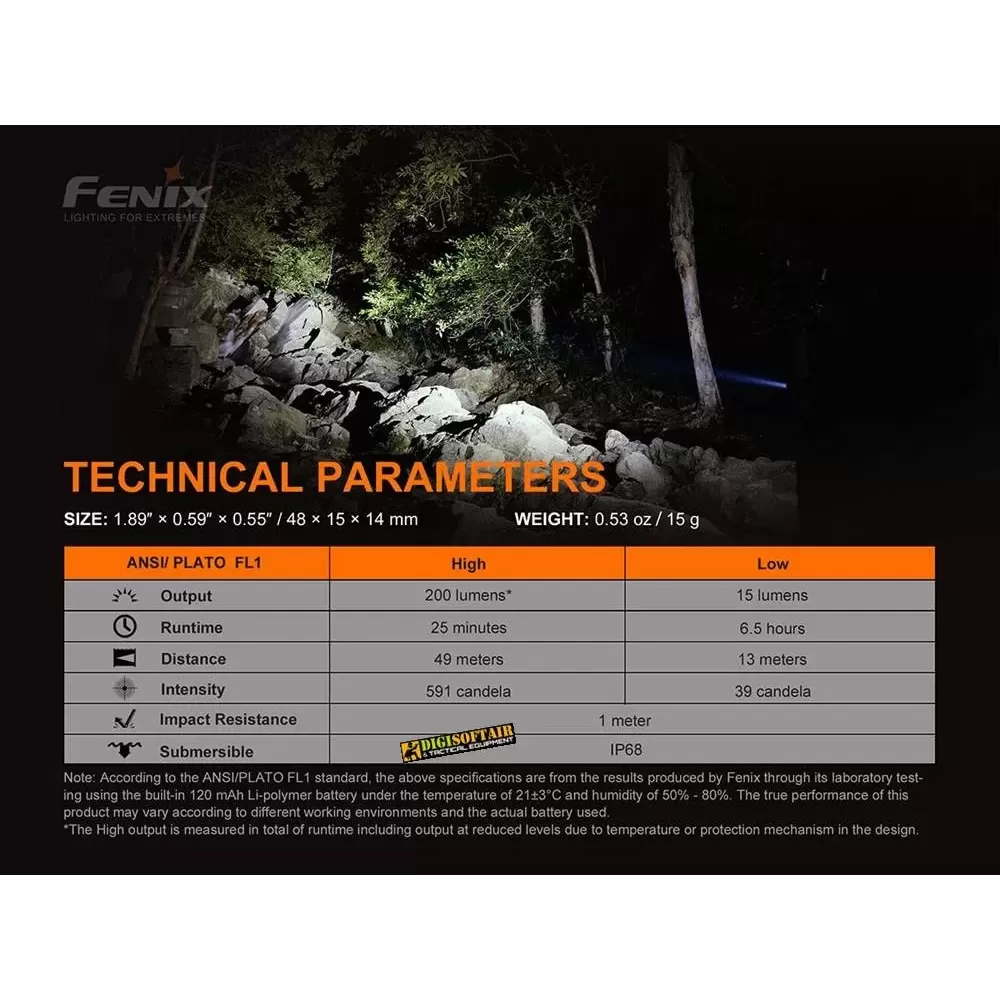

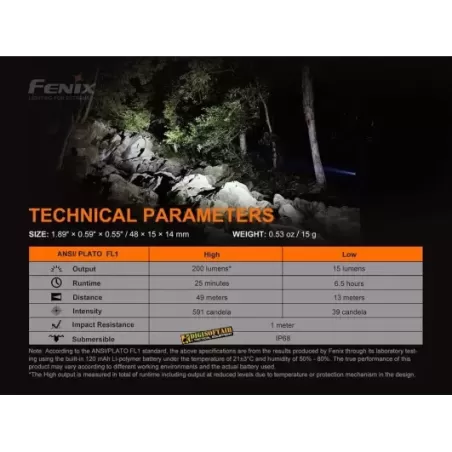

E02R Size:

Length: 1.89” (48mm)
Head: 0.59” (15mm)
Body: 0.55” (14mm)

E02R Weight:

0.53 oz. (15g)

E02R Battery:

Built-in 120 mAh li-polymer battery

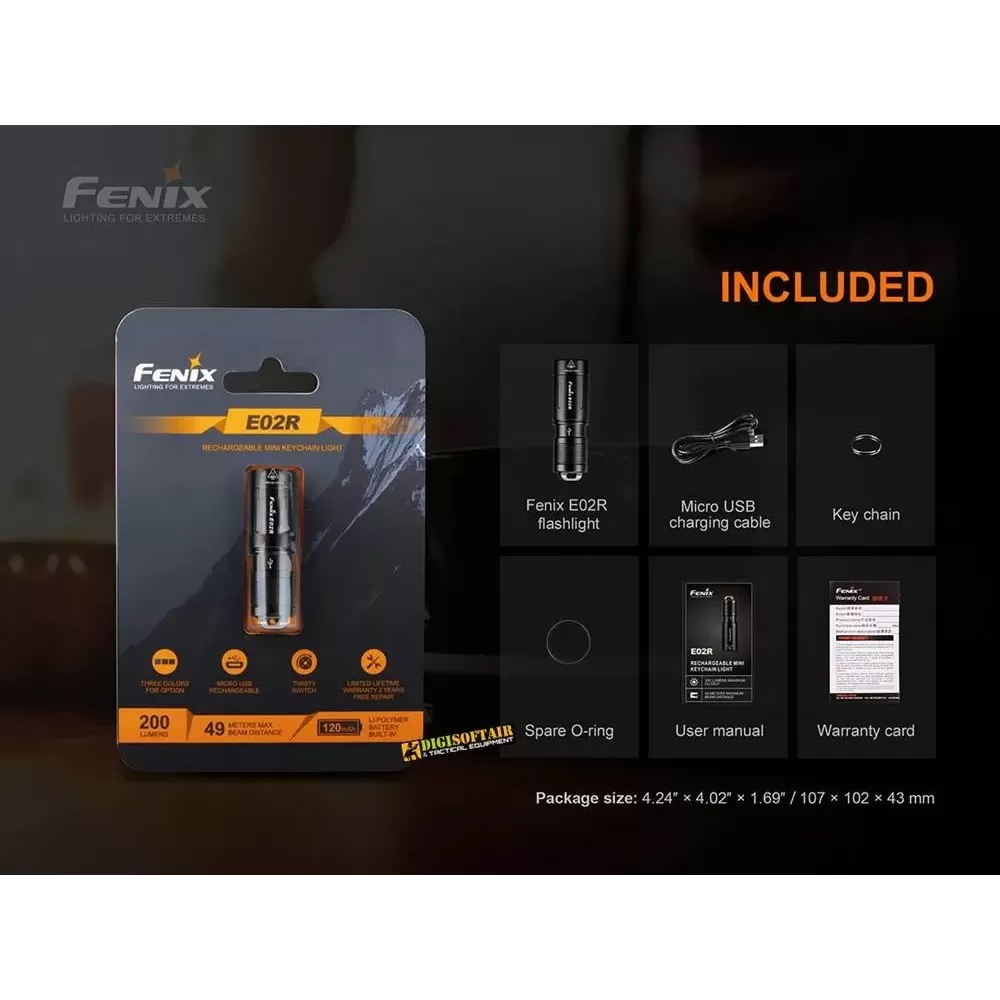

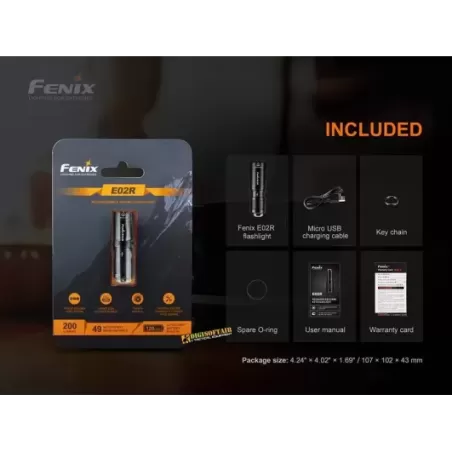

Included:

Micro USB charging cable, key ring, spare O-ring

• Cree XP-G2 S3 white LED, with a lifespan of 50,000 hours.

• Built-in 120 mAh Li-polymer battery.

• Micro USB charging port for direct charging.

• Twisty head for on/off and brightness selection.

• Integrated design of light head and tail.

• High-efficiency lens with total reflective coating.

• Made of durable A6061-T6 aluminum.

• Premium type HAIII hard-anodized anti-abrasive finish.

On/off
Tighten the light head to turn on the light, loosen the light head to turn off the light.

Output Selection
Twist the light head to select brightness level: rotate to turn on the light on Low, continuous rotation to turn on the light on High.

Charging

1. First loosen the light head to reveal the Micro USB charging port and plug the USB A socket of the charging cable into an electrical outlet, then connect the Micro USB socket of the charging cable to the light.

2. The indicator will display red while charging, and will turn to green when fully charged.

3. Once charging is completed, be sure to tighten the light head to maintain dustproof and waterproof ability.

Note:

1. Charge the light in time when the battery power gets too low to ensure the normal life of the battery.

2. The normal charging time is approximately 1 hour from depletion to full charging.

3. Recharge a stored light every four months to maintain optimum performance of the battery.
