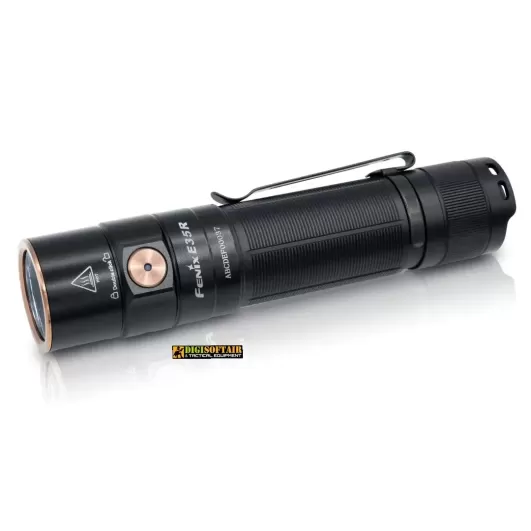

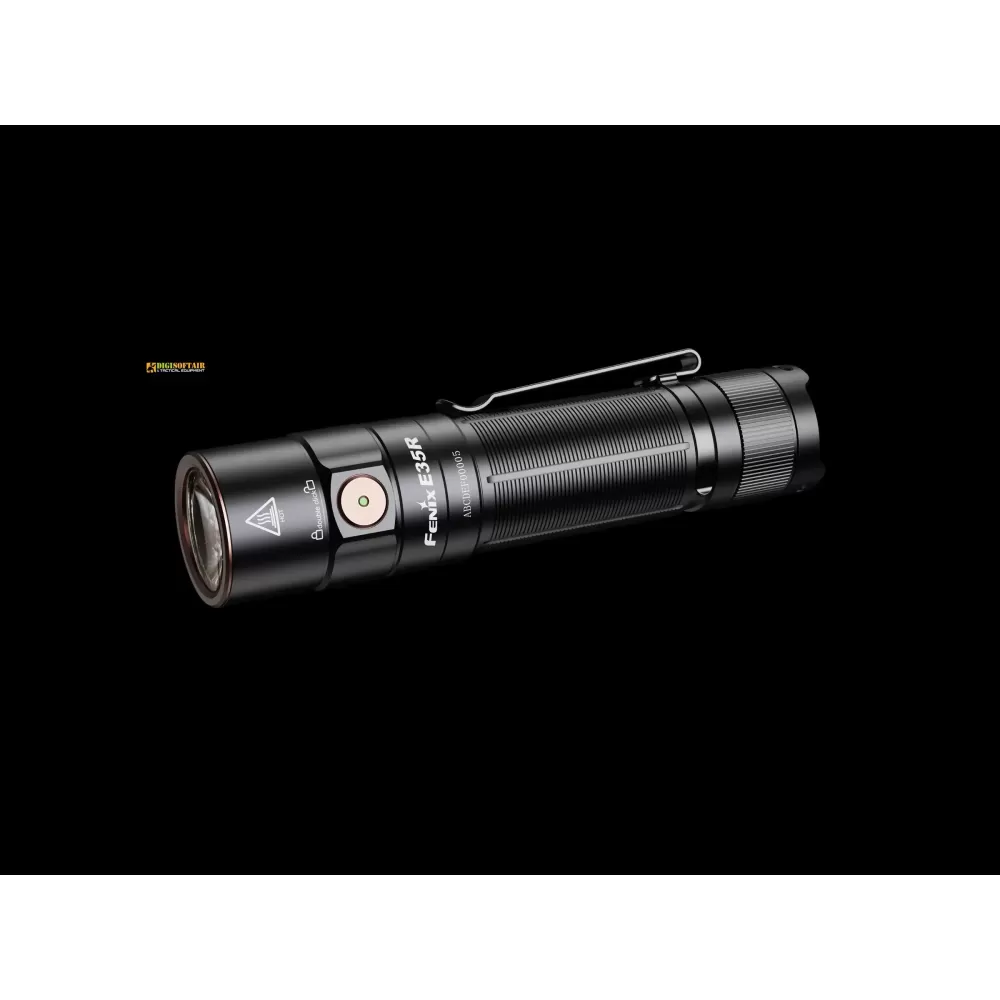

The Fenix E35R is a rechargeable EDC (Everyday Carry) flashlight designed to provide powerful yet compact illumination. This pocket-sized flashlight is powered by a built-in rechargeable battery, eliminating the need for disposable batteries.

With a maximum brightness output of 3100 lumens, the E35R offers extremely intense light that can illuminate wide areas or reach long distances. It features various lighting modes and an intuitive user interface for easy control. Its waterproof and impact-resistant construction makes it suitable for use in adverse conditions.

With its compact and lightweight design, the Fenix E35R is perfect for everyday carry and being ready for use at any time.

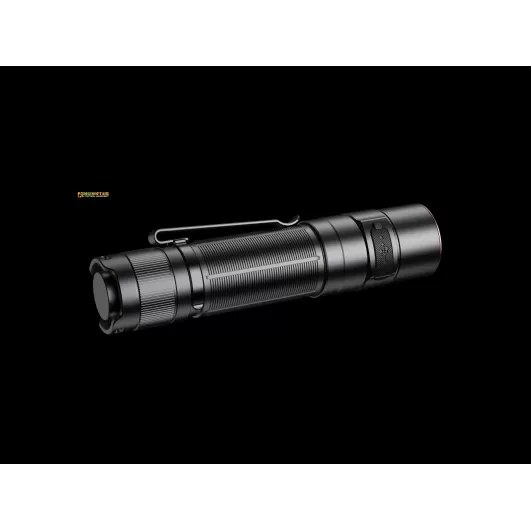

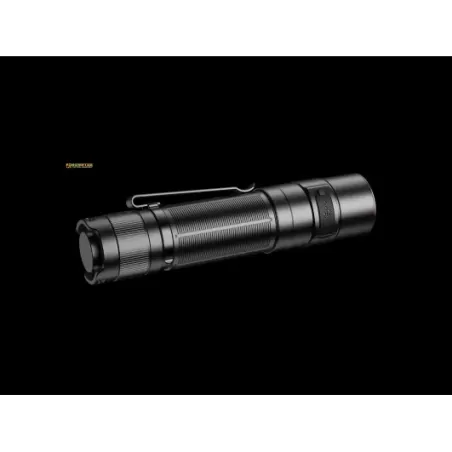

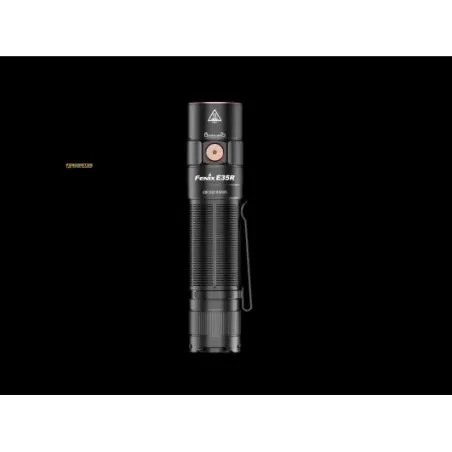

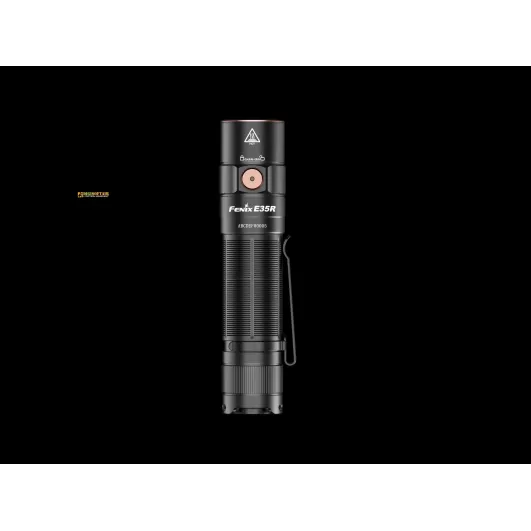

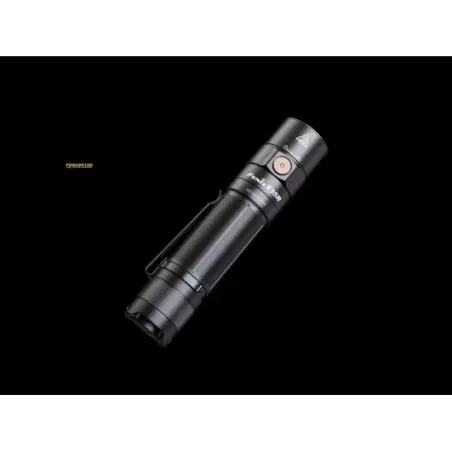

Built-in rechargeability and improved performance are what make the Fenix E35R flashlight unique from its predecessor, the Fenix E35 V3.0. This small flashlight, which is only 4.72 inches long, is able to blast a maximum 3100 lumens 853 feet (260m)—amazing for a flashlight this size! The single side switch activates on/off and all lighting modes—no need for a tail switch. A magnet now sits where a tail switch normally would, allowing you to attach the flashlight to most metal surfaces for hands-free use. It's USB-C rechargeable with a battery level indicator and is waterproof and dustproof. When you need a rechargeable super bright EDC flashlight, the Fenix E35R is the perfect choice. THIS LIGHT DOES NOT HAVE A TAIL SWITCH.

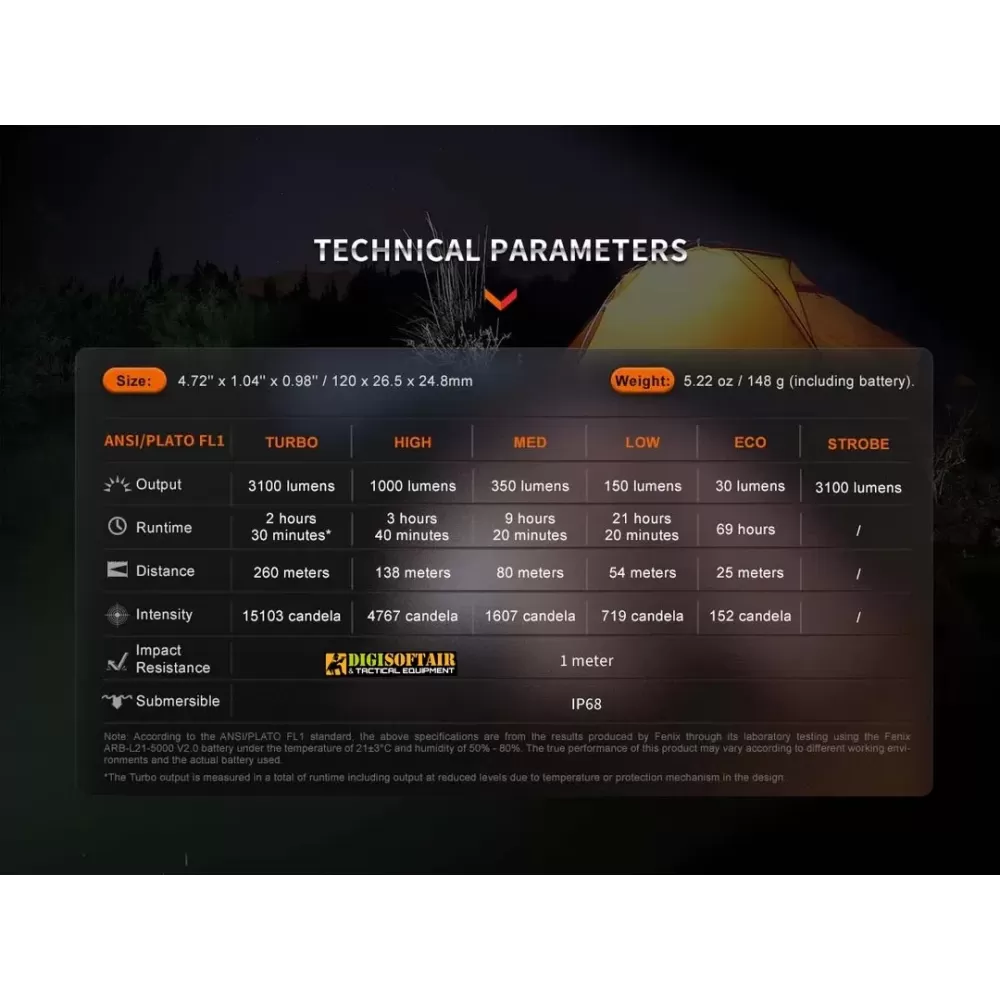

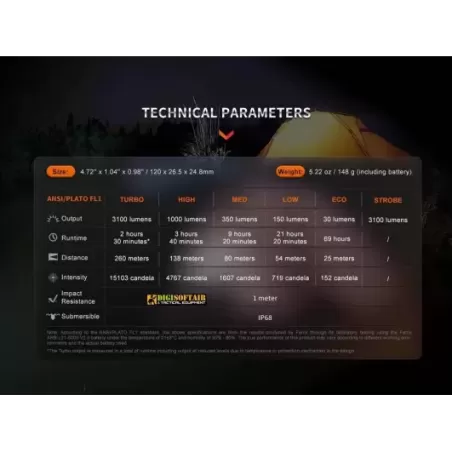

Max Lumens: 3100
Max Beam Distance: 853 feet (260 meters)
Max Runtime: 69 hours
Lighting Modes: Six lighting modes including five brightness levels and strobe
Bulb Type: Luminus SST70 LED with a lifespan of 50,000 hours
Size: Length: 4.72” (120mm) Head: 1.04” (26.5mm) Body: 0.98” (24.8mm)
Weight: 5.22 oz. (148g) including battery
Battery: 5.22 oz. (148g) including battery

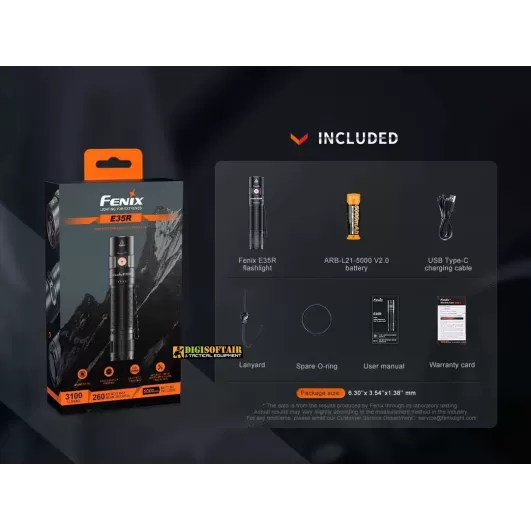

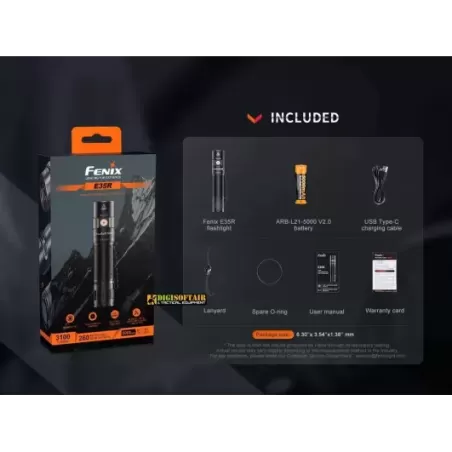

Included: ARB-L21-5000 battery, USB Type-C charging cable, lanyard, spare O-ring

Uses a Luminus SST70 LED with a lifespan of 50,000 hours.
Instant strobe and output selection with the mechanical side switch.
Built-in USB Type-C charging interface; fast charging.

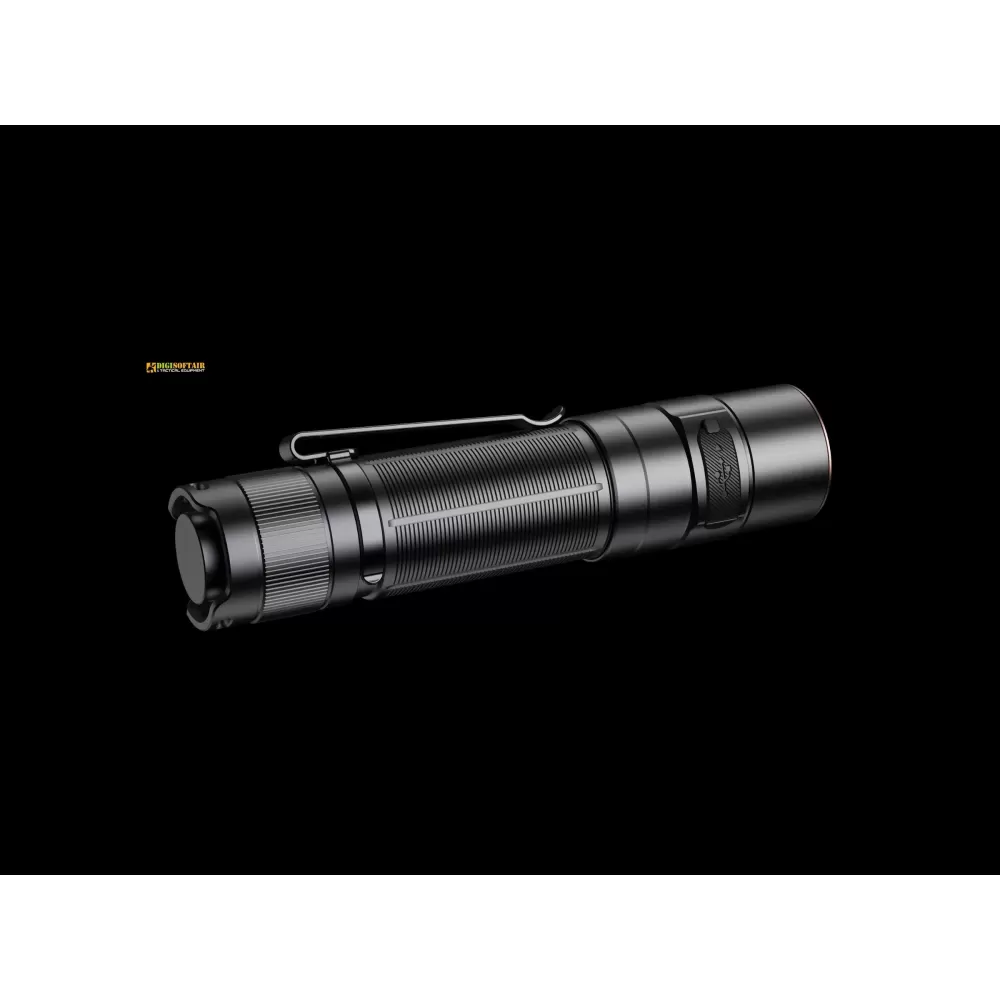

Magnetic tail for hands-free use.
Included body clip for easy carry.
Boot-up battery level indication and low-voltage warning.
A high-efficiency optical lens provides a wide, soft and balanced beam.
Reverse polarity protection, to protect from improper battery insertion.
Made of A6061-T6 aluminum.
Premium type HAIII hard-anodized anti-abrasive finish.

Funcions:

On/off

Press the switch for 0.5 seconds to turn on/off the light.



Output Selection

With the light switched on, single click the switch to cycle through Eco→Low→Med→High→Turbo.



Strobes

With the light switched on, press and hold the switch for 1.2 seconds to enter strobe.



Intelligent memory circuit

The light memorizes the last selected output excluding Turbo, High and Strobe. When turned on again the previously used mode will be recalled. The Med mode will be activated when turned on again if the light is turned off on Turbo and High modes.



Lock/Unlock

Lock: with the light unlocked and switched off, double click the switch within 0.5 seconds to lock the light, the light will blink twice on Eco to indicate locked status.

Unlock: with the light locked, double click the switch within 0.5 seconds, the light will be unlocked and activated on Eco.

*In locked status, clicking or pressing the switch will activate 2 one-second blinks on Echo to indicate locked status.



Battery Specifications

Only the ARB-L21 Series (21700 3.6V) batteries are recommended

* 21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.



BatteryReplacement

Unscrew the light head and insert the battery with the anode side (+) towards the light head, then screw the light head back on.



Charging

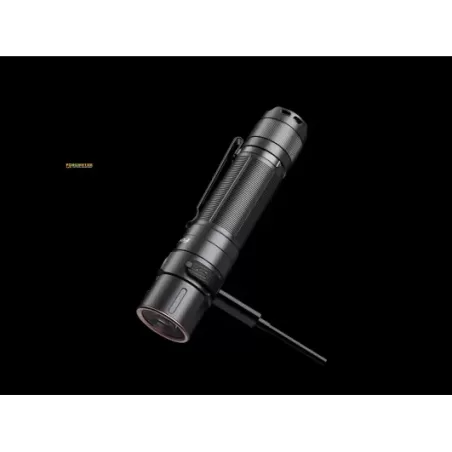

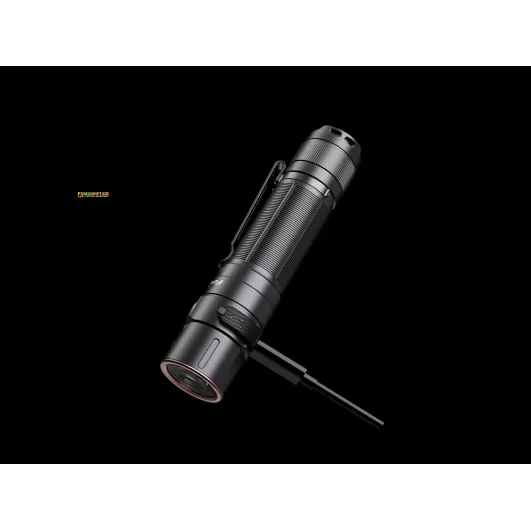

First switch off the light and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
The indicator will display red while charging, and will turn green when fully charged.
Once charging is completed, be sure to close the anti-dust cover to maintain the dustproof and waterproof ability.
Recommended to use 5V/2A and above adapter.

Note:

The normal charging time of the included Fenix ARB-L18-5000 V2.0 rechargeable battery is approximately 3 hours from depletion to full charging.
Recharge a stored light every four months to maintain the optimum performance of the battery.
Do not take out the battery during charging, and the light is available while charging (excluding Turbo, High and Strobe).

Battery Level Indication

With the light switched off, single click the side switch to check the battery status, the indicator with last for 3 seconds. Each time the light is turned on, the indicator in the neck of the flashlight will indicate the battery level and will last for 3 seconds.

Green light on: saturated 100% - 85%
Green light flashes: sufficient 85% - 50%
Red light on: poor 50% - 25%
Red light flashes: critical 25% - 1%

Notes: This only works with Fenix ARB-L21 series rechargeable battery.



Intelligent Overheat Protection

The light will accumulate a lot of heat when used on High or Turbo modes for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user the reselection of High or Turbo modes.



Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco mode is reached. When this happens in Eco mode, the battery level indicator constantly blinks red to remind you to timely recharge or replace the battery.

Notes: This only works with Fenix ARB-L21 series rechargeable battery.



Usage and Maintenance

Disassembling the sealed head can cause damage to the light and will void the warranty.
Fenix recommends using only a high-quality protected battery.
If the light will not be used for an extended period, remove the battery for proper storage.
Lock the light or remove the battery to prevent accidental activation during storage or transportation.
Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare．
Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:
A: Poor battery level.
Solution: Recharge or replace the battery
B: The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.



Warning

Do place this light out of the reach of children!
Do NOT shine the light directly into the eyes of anyone!
Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature!
Do NOT use the light in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the light or internal battery fails!
This light will accumulate a lot of heat while working, resulting in a high temperature of the flashlight shell. Pay attention to safe use to avoid scalding.
Turn off and lock the light or remove the battery from the light to prevent accidental activation when the light is placed in a closed and flammable environment such as pockets and backpacks!
The LED of this flashlight is not replaceable; so the whole light should be replaced when the LED reaches the end of its life.
